Features
•
Semi-Automatic Machine
•
Swivel head for easy angle cutting without moving material
•
Precision double mitre cut to 45 and 60 degrees right and left
•
Auto lifting frame
•
Single column horizontal bandsaw
•
Accurate cutting angle setting by servo motor and hydraulic clamping
•
Hydraulic blade tension
•
Multi strokes hydraulic vice
•
Hydraulic table movement
•
Saw bow height auto set by descending slide bar
•
Variable blade speed by frequency inverter
•
Variable vice pressure
•
Digital Display (Cutting Angle and Blade Speed)
•
Power Driven Chip Brush
•
Touch Screen
•
Automatic Lubrication System
© 2016 PICROSYNC CC - Reg. No. 2010/020942/23 - All Rights Reserved
Address: Unit E, 8 Moller Street, Industries East, Germiston, 1401
Phone: +27 83 679 3706
Email: service@picrosync.co.za
Business hours: Mondays - Thursdays: 07:30 - 17:00
Fridays: 07:30 - 14:30
Sole South African Distributor
Is your machine alerting you to overload alarms, or showing any
other signs of abnormal operation ?
Give us a call right away ! Arrie - Service Co-ordinator +27 83 679 3706

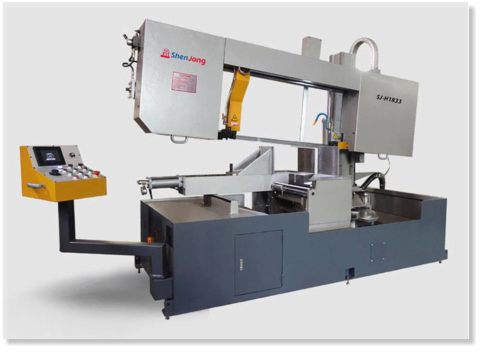

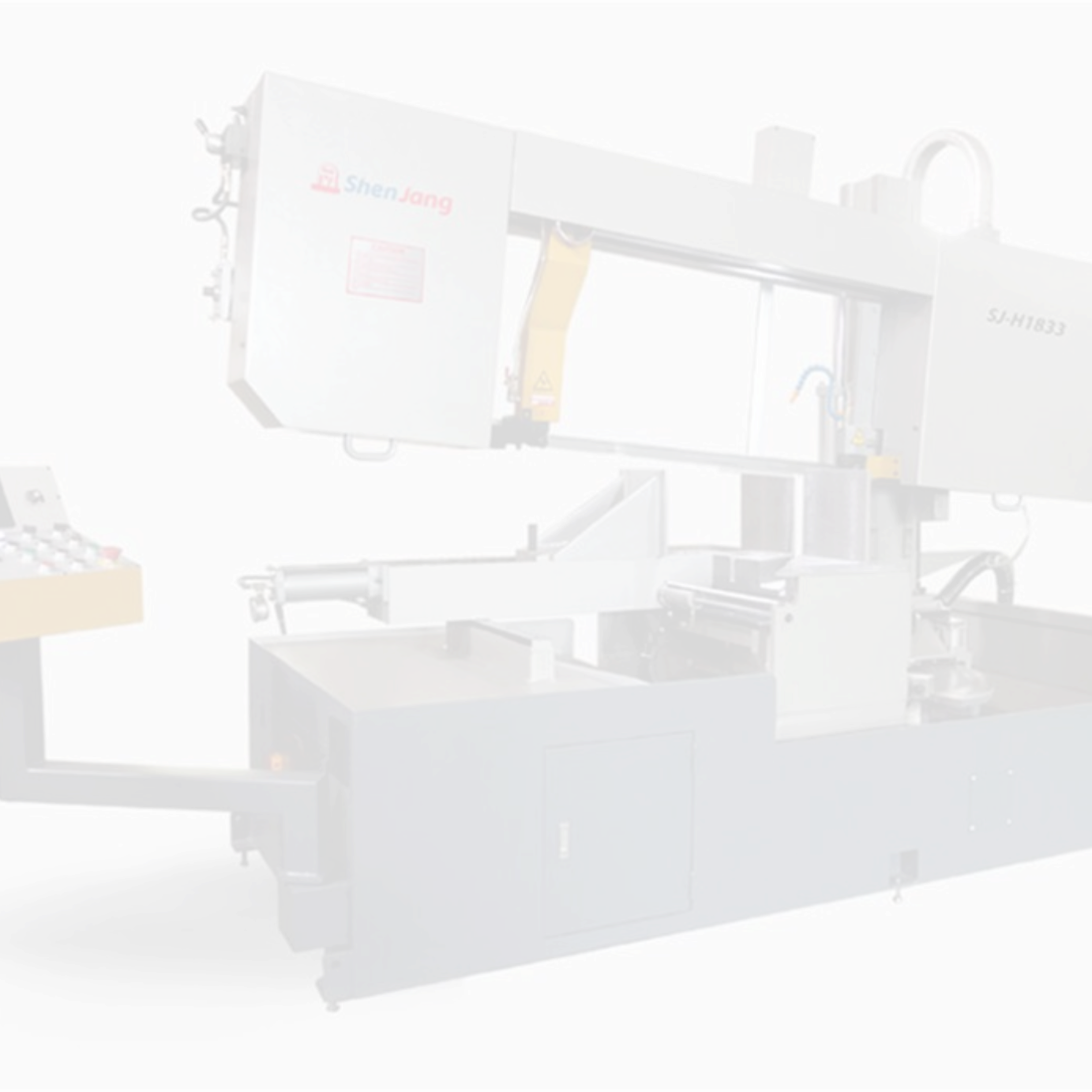

Semi-Automatic Horizontal Bandsaw
Contact us today
083 679 3706
Specifications
SJ-H1833 (18”)
18” (458 mm)
18” (458 mm)
Capacity at 90°
18” x 31 ½” (458 x 800 mm)
18” (458 mm)
Capacity at 45°
18” (458 mm)
15” (381 mm)
Capacity at 60°
15” (381 mm)
Blade Size
41 x 1.3 x 6100 mm
Motor
7.5 HP (5.63 kW)
Speed Range
15 ~ 90 MPM
Packing Size
3450 x 1150 x 2300 mm
Nett Weight
2300 kg
Gross Weigh
2500 kg
SJ-H1833 (18”)
•
Bi-Direction Mitre Cutting - Single Column - Angle Cutting
